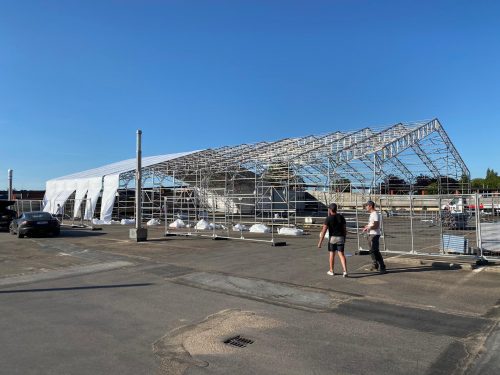

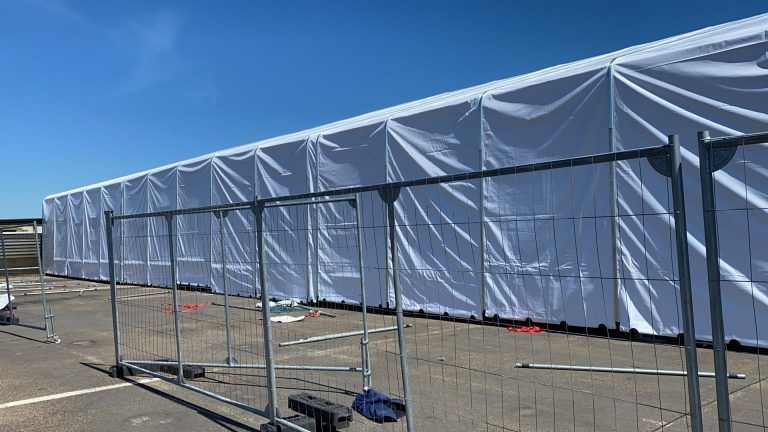

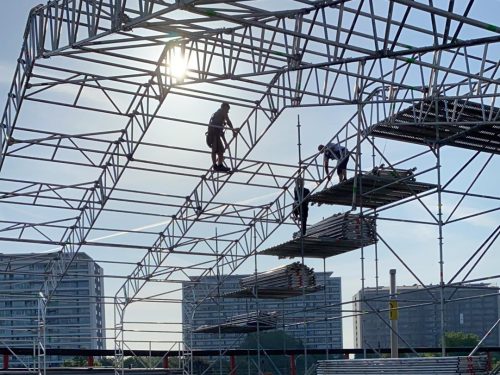

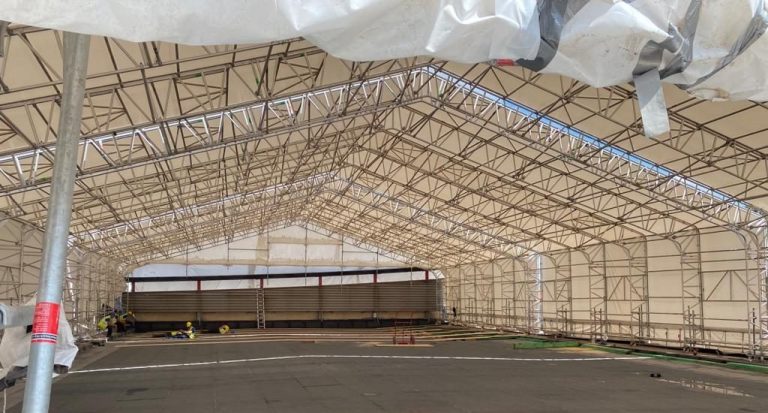

DESSA were given the task of designing this mobile structure for their client TD-S in Belgium. The client wanted to have full flexibility for the renovation of a large shopping centre car park. DESSA therefore designed the roof into 5 bay modules (12.86m long each) which could be linked together with a small 390mm bay and sheet. This way, roofs could be between 12-66 metres long. Rolled on scaffold castors, the shelter was secured to the ground using continuous beams and DESSA offset shear anchors.
Date: | March 2020 |
Duration: | 18 months |
Customer: | TD-S |
Provision: | Design and Supply |
System: | UNI Roof shelter |
Span: | 23m |
Length: | up to 66m |
Build Method: | By rollout |
